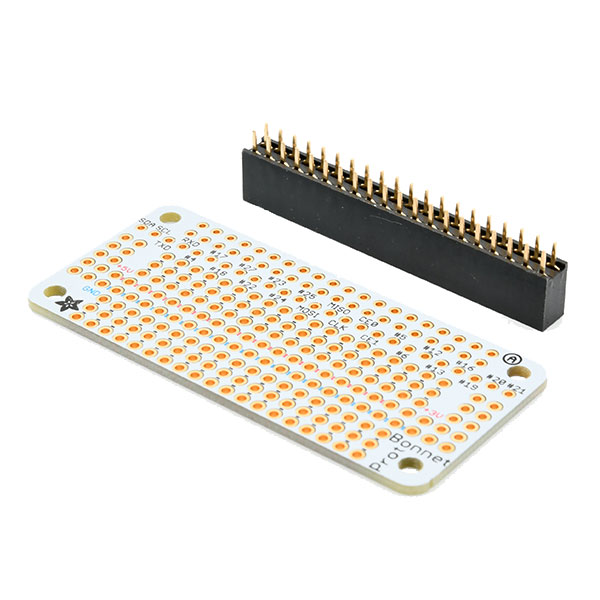

Description Adafruit Perma Proto Mini Kit
Design your own Bonnet or pHAT, add your own circuits or dress up your Pi Zero with this prototyping Bonnet kit. This board has a grid of 2.54mm prototyping solder holes. Here you can attach components such as ICs, resistors, LEDs and other components. The holes are connected to the bottom via traces. Just like you are used to from a Breadboard. There are also long power strips for +3V, +5V and Ground connections to the Pi.

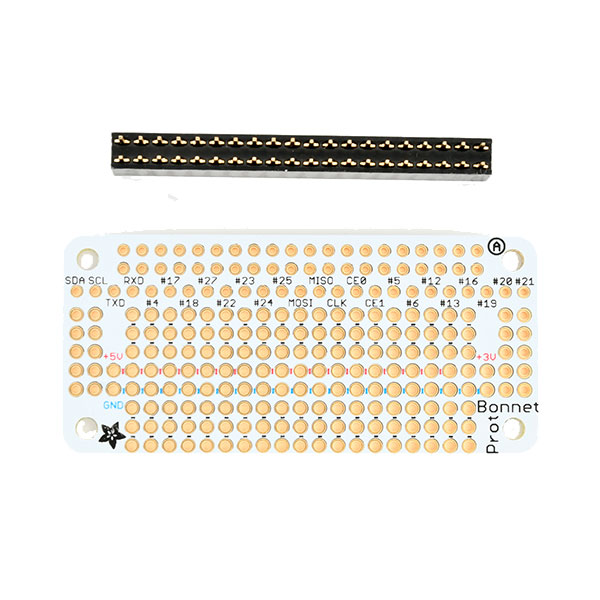

At the top almost every pin is broken out to connect the Pi. (Except #26)
The Perma-Proto Bonnet has a printed circuit board and one 2x20 GPIO header. When you solder the header to the board you can attach the Female side to a Raspberry Pi Zero . (like a bonnet)
Unlike Adafruit's Perma-Proto HATs, this one doesn't have an EEPROM, so you can stack it with other Bonnets and pHATs without any problems.
You can modify your Perma-Proto setup by replacing the default 2x20 header with a stack or extra tall header . To use this product you will need to solder a header to the PCB. It is designed for the Raspberry Pi Zero s, but can be used on Pi with a 2x20 header.
Adafruit Perma Proto Mini Kit
In stock
€5.26
Order before 4:00 PM = shipped today
14 days free returns
5151+ reviews
4.7 avg.
5151+ reviewsView allSKU: ADA2010 Categories: Raspberry Pi Accessories , HAT & pHAT , Adafruit
Description Adafruit Perma Proto Mini Kit
Design your own Bonnet or pHAT, add your own circuits or dress up your Pi Zero with this prototyping Bonnet kit. This board has a grid of 2.54mm prototyping solder holes. Here you can attach components such as ICs, resistors, LEDs and other components. The holes are connected to the bottom via traces. Just like you are used to from a Breadboard. There are also long power strips for +3V, +5V and Ground connections to the Pi.
At the top almost every pin is broken out to connect the Pi. (Except #26)
The Perma-Proto Bonnet has a printed circuit board and one 2x20 GPIO header. When you solder the header to the board you can attach the Female side to a Raspberry Pi Zero . (like a bonnet)
Unlike Adafruit's Perma-Proto HATs, this one doesn't have an EEPROM, so you can stack it with other Bonnets and pHATs without any problems.
You can modify your Perma-Proto setup by replacing the default 2x20 header with a stack or extra tall header . To use this product you will need to solder a header to the PCB. It is designed for the Raspberry Pi Zero s, but can be used on Pi with a 2x20 header.
