Description WS2812B 4x4 RGB LED module

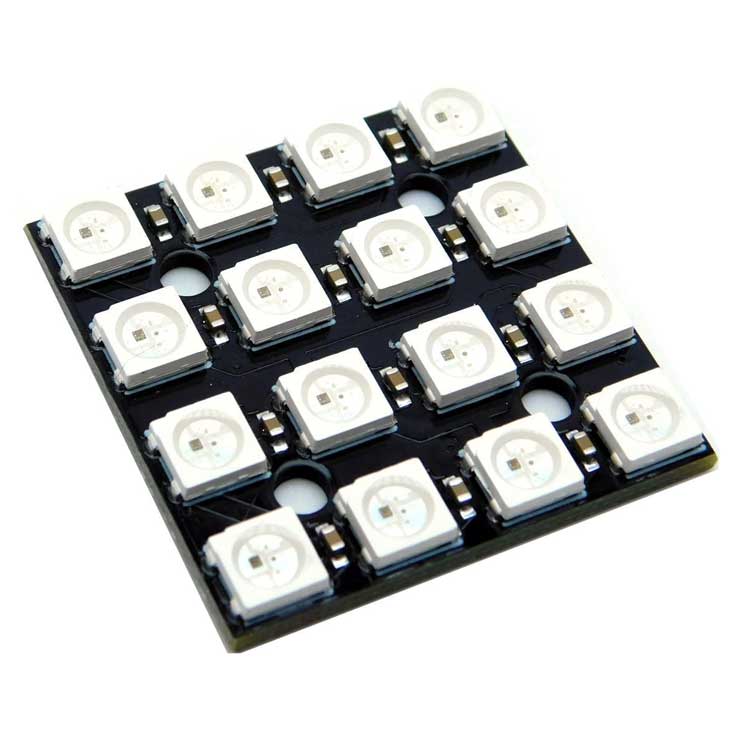

Discover the versatility of the WS2812B 4x4 RGB LED Module. This compact module measures only 30 x 30 mm. It is equipped with 16 SMD 5050 Worldsemi WS2812B LEDs. Each LED can be controlled individually. This offers endless possibilities for colors and patterns. The LEDs are arranged in a 4x4 matrix. This makes it easy to create complex lighting designs.

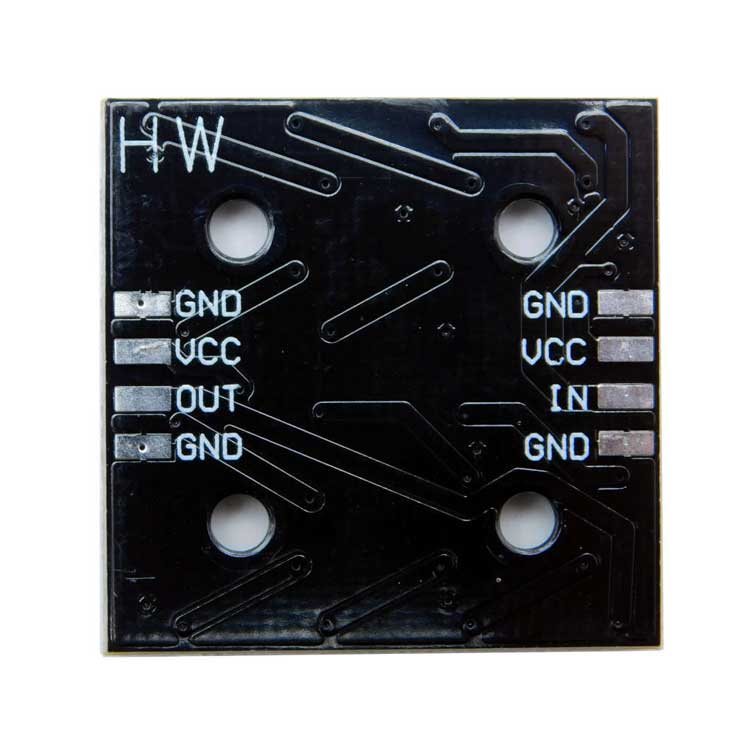

The module operates on a supply voltage of 5V. It has a power of only 2.5 W. This makes the module energy efficient. The module is easy to connect to other units. This is done by connecting the output pin of one module to the input pin of another. The result is a seamless, expandable light show.

The WS2812B 4x4 RGB LED Module is designed with a black PCB. This gives it a sleek, professional look. The module is IP20 rated. This means it is not waterproof. So it is best suited for indoor use. The RGB LEDs have specific wavelengths. Red is between 620-625nm, green is between 522-525nm, and blue is between 465-467nm. These precise wavelengths ensure bright, vibrant colors.
