Description NeoPixel Ring - 24x 5050 RGB LED with drivers

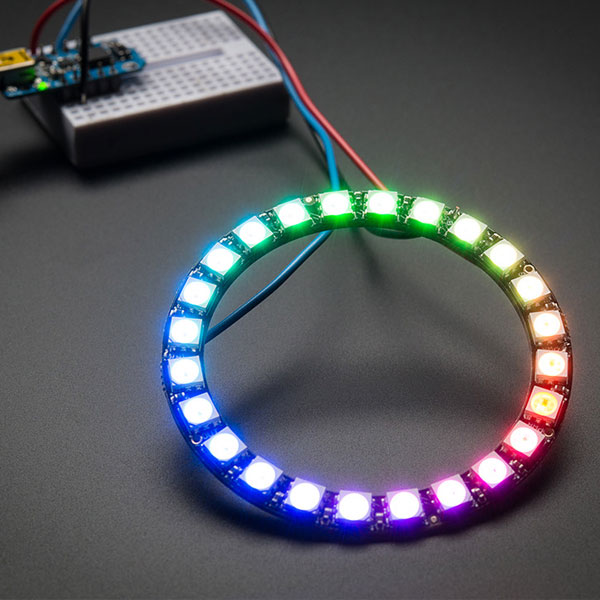

This is a NeoPixel ring from Adafruit. It contains 24 ultra bright RGB NeoPixels arranged in a circle. The ring has an outer diameter of 66mm. The rings are chainable. Connect the output pin of one to the input pin of another. You only need one microcontroller pin to control as many rings as you can chain together .
Each LED is addressable because the driver chip is on the LED itself. They each have ~18A of constant current drive, which makes the color very consistent. Even when the voltage varies. You don't need any external choke resistors, which makes the design slim. Just power it with 5VDC and you're good to go.
It uses a single data line with a very timing specific protocol. Since the protocol is timing sensitive you will need a real time microcontroller. Examples include Arduino, AVR, PIC, mbed, Raspberry Pi . It cannot be used with a Linux based microcomputer or interpreted microcontroller such as the NetDuino . Adafruit has a NeoPixel library for Arduino which makes it easy to use. An 8MHz or faster processor is required. Wiring tutorials are available on the Adafruit site .
NeoPixel Ring - 24x 5050 RGB LED with drivers
In stock
€19.96
Order before 4:00 PM = shipped today
14 days free returns
5150+ reviews
4.7 avg.
5150+ reviewsView allSKU: ADA3010 Categories: LED & Display , Adafruit
Description NeoPixel Ring - 24x 5050 RGB LED with drivers
This is a NeoPixel ring from Adafruit. It contains 24 ultra bright RGB NeoPixels arranged in a circle. The ring has an outer diameter of 66mm. The rings are chainable. Connect the output pin of one to the input pin of another. You only need one microcontroller pin to control as many rings as you can chain together .
Each LED is addressable because the driver chip is on the LED itself. They each have ~18A of constant current drive, which makes the color very consistent. Even when the voltage varies. You don't need any external choke resistors, which makes the design slim. Just power it with 5VDC and you're good to go.
It uses a single data line with a very timing specific protocol. Since the protocol is timing sensitive you will need a real time microcontroller. Examples include Arduino, AVR, PIC, mbed, Raspberry Pi . It cannot be used with a Linux based microcomputer or interpreted microcontroller such as the NetDuino . Adafruit has a NeoPixel library for Arduino which makes it easy to use. An 8MHz or faster processor is required. Wiring tutorials are available on the Adafruit site .
