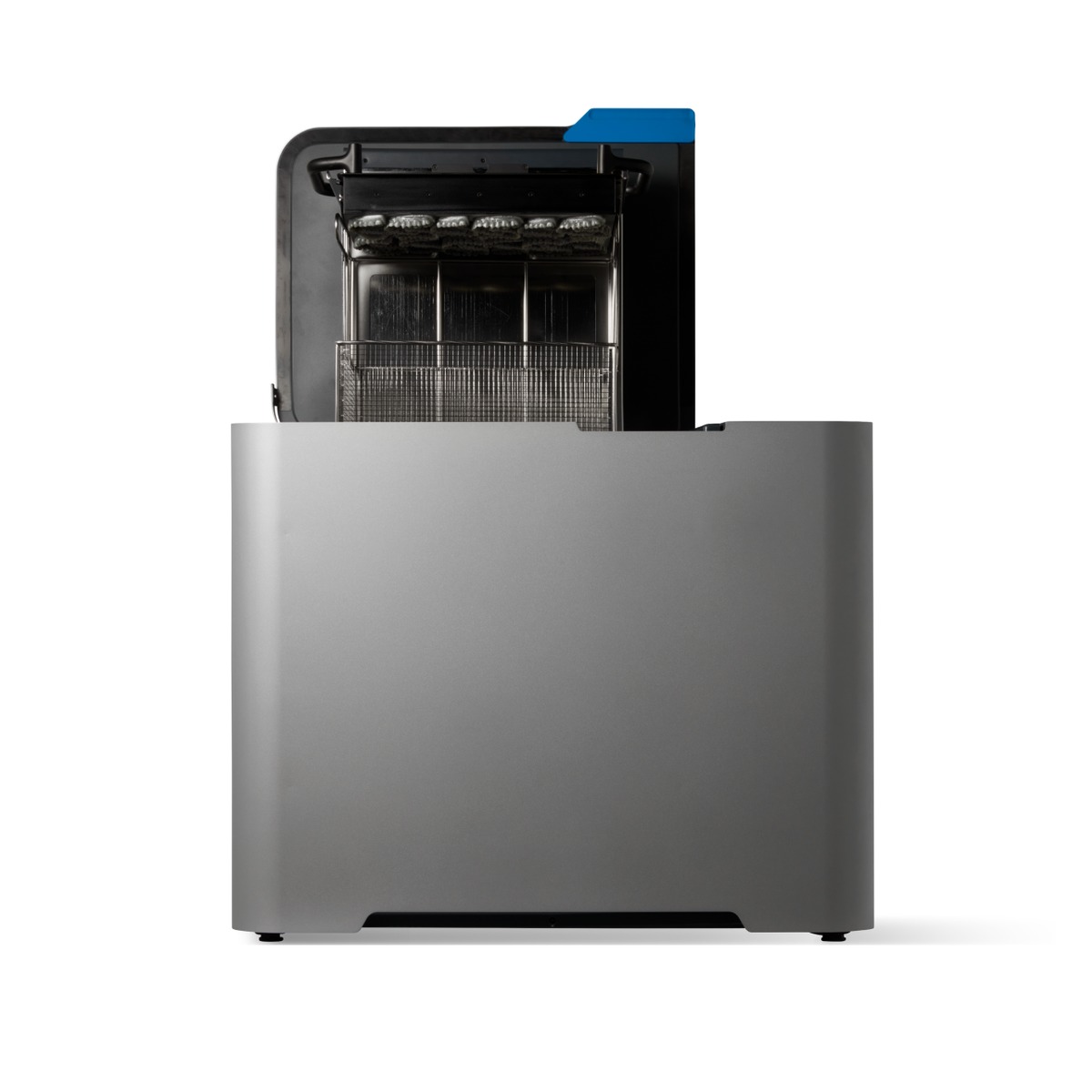

Description Formlabs Form Wash L V2
The Formlabs Form Wash L V2 is a washer for large resin parts. You use the machine with the Form 4L and the Form 4. The spacious design suits larger models and a workspace with multiple print jobs. The included adapter accommodates two Form 4 build platforms.
After a resin print, liquid resin remains on the surface. A washing step removes this layer. This is important for sharp details and a neat finish. Only after washing and drying should you proceed with curing. Use the wax liquid prescribed by Formlabs for each resin.
Prepare for the wash cycle before removing the part from the printer. Check the fluid level and the condition of the bath. A heavily soiled bath can leave resin on the part. Refill or replace the fluid according to the maintenance instructions. Then select the wash time that suits the material and your model.
Position the part so that the liquid can reach all surfaces. Pay extra attention to hollow models, small holes, and deep recesses. Resin can remain there. Check that openings are large enough for proper rinsing. Use the appropriate holder or build platform according to the machine instructions. Do not exceed the permitted size of the wash chamber.
After washing, check the part for residue. Then allow it to dry completely according to the material instructions. Residual liquid can affect the curing result. Allow hollow parts sufficient time to drain. Remove supports when Formlabs advises for your material.
A consistent working method helps when processing multiple parts in succession. Always use the same setting for the same material and model type. Note any changes in wash time. Also keep track of when you maintain the bath. This way, you can find the cause of a defective finish more quickly. Check the result on a test part first before processing an entire series.
The large format requires a fixed location for the machine and filling the bath. Check the required workspace in advance. Align your schedule with the largest parts you want to wash. For the next step, use a suitable curing machine, such as Form Cure L. Select wash liquid and other finishing agents based on the material.
Features
- For one Form 4L build platform
- Also two Form 4 platforms with adapter
- Automatic lift after washing
Package contents
- 1 x Form Wash L V2
- 1 x build platform adapter for two Form 4 build platforms
Formlabs Form Wash L V2
SKU: FORM3007
- Order before 4:00 PM = shipped today
- Free shipping from €99.95
- 14 days free returns
- Same-day pickup at our office in Leusden
