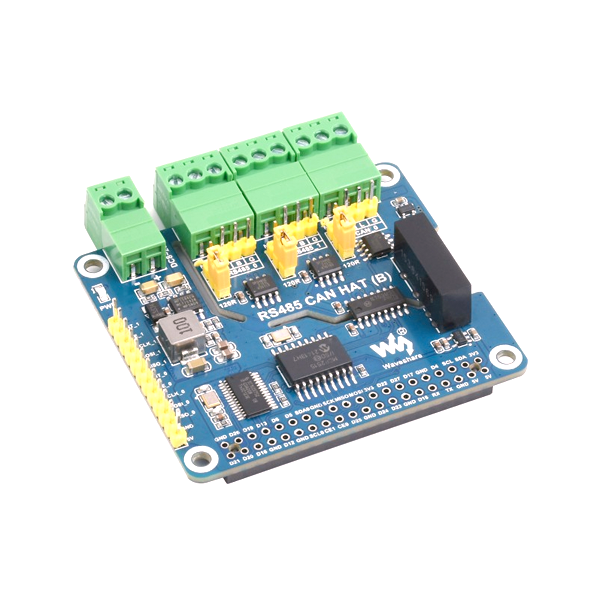

Isolated RS485 CAN HAT (B)
Description Isolated RS485 CAN HAT (B)
The Isolated RS485 CAN HAT (B) is an expansion board for the Raspberry Pi , designed for industrial applications . With 2 RS485 channels and 1 CAN channel, this HAT offers versatile communication options for your projects . The HAT is compatible with the Raspberry Pi standard 40PIN GPIO header and supports various Raspberry Pi models . The CAN channel uses the MCP2515 controller and CAN transceiver. This allows you to convert the Raspberry Pi 's SPI interface to CAN communication. This allows you to easily communicate with other CAN devices and vehicle networks. The 2 RS485 channels use the SC16IS752+SP3485 dual-chip combination to convert SPI to RS485 communication . This allows you to establish reliable serial communication over long distances . The HAT is equipped with a built-in power conversion circuit. Allowing you to use a wide range of supply voltages from 8V to 28V. This allows you to power both the Raspberry Pi and the HAT from a single power source. Thanks to the unibody isolation of the supply voltage, a stable isolated voltage is provided, without the need for additional power to the isolated terminals . This ensures reliable and interference-free operation, while also ensuring low power consumption . The HAT is equipped with various protection features, including an onboard TVS (Transient Voltage Suppressor) to effectively suppress overvoltage and voltage spikes in the circuit .
Isolated RS485 CAN HAT (B)
In stock
€23.95
Order before 4:00 PM = shipped today
14 days free returns
5158+ reviews
4.7 avg.
5158+ reviewsView allSKU: WAV2031 Categories: Waveshare
Description Isolated RS485 CAN HAT (B)
The Isolated RS485 CAN HAT (B) is an expansion board for the Raspberry Pi , designed for industrial applications . With 2 RS485 channels and 1 CAN channel, this HAT offers versatile communication options for your projects . The HAT is compatible with the Raspberry Pi standard 40PIN GPIO header and supports various Raspberry Pi models . The CAN channel uses the MCP2515 controller and CAN transceiver. This allows you to convert the Raspberry Pi 's SPI interface to CAN communication. This allows you to easily communicate with other CAN devices and vehicle networks. The 2 RS485 channels use the SC16IS752+SP3485 dual-chip combination to convert SPI to RS485 communication . This allows you to establish reliable serial communication over long distances . The HAT is equipped with a built-in power conversion circuit. Allowing you to use a wide range of supply voltages from 8V to 28V. This allows you to power both the Raspberry Pi and the HAT from a single power source. Thanks to the unibody isolation of the supply voltage, a stable isolated voltage is provided, without the need for additional power to the isolated terminals . This ensures reliable and interference-free operation, while also ensuring low power consumption . The HAT is equipped with various protection features, including an onboard TVS (Transient Voltage Suppressor) to effectively suppress overvoltage and voltage spikes in the circuit .
